Technology
A camera-based sensor watches retroreflective targets and turns that into site millimetric displacement figures, continuously. This page explains how the parts fit together.
One measurement loop runs day and night. Light returns from each target, the sensor resolves it to a position, and the platform turns positions into displacement, charts and alerts.
This loop repeats on the interval you set; no site visits required.
Measuring
The Principle
Totalite is a non-invasive optical instrument; it photographs it, and measures how the targets move within the frame.
Capture
Infrared illumination lights up every retroreflective target in view. The sensor captures the scene on the interval you choose, day and night.
Resolve
Image processing locates the centre of each target to a fraction of a pixel. At the calibrated distance, that fraction is a known number of millimetres.
Compare
Every position is compared against the baseline. Displacement in 2D is charted per target, and crossing a threshold you set sends an alert.
The result: 1 mm accuracy at 40 m, with no cabling to the structure and nothing powered on the target side.

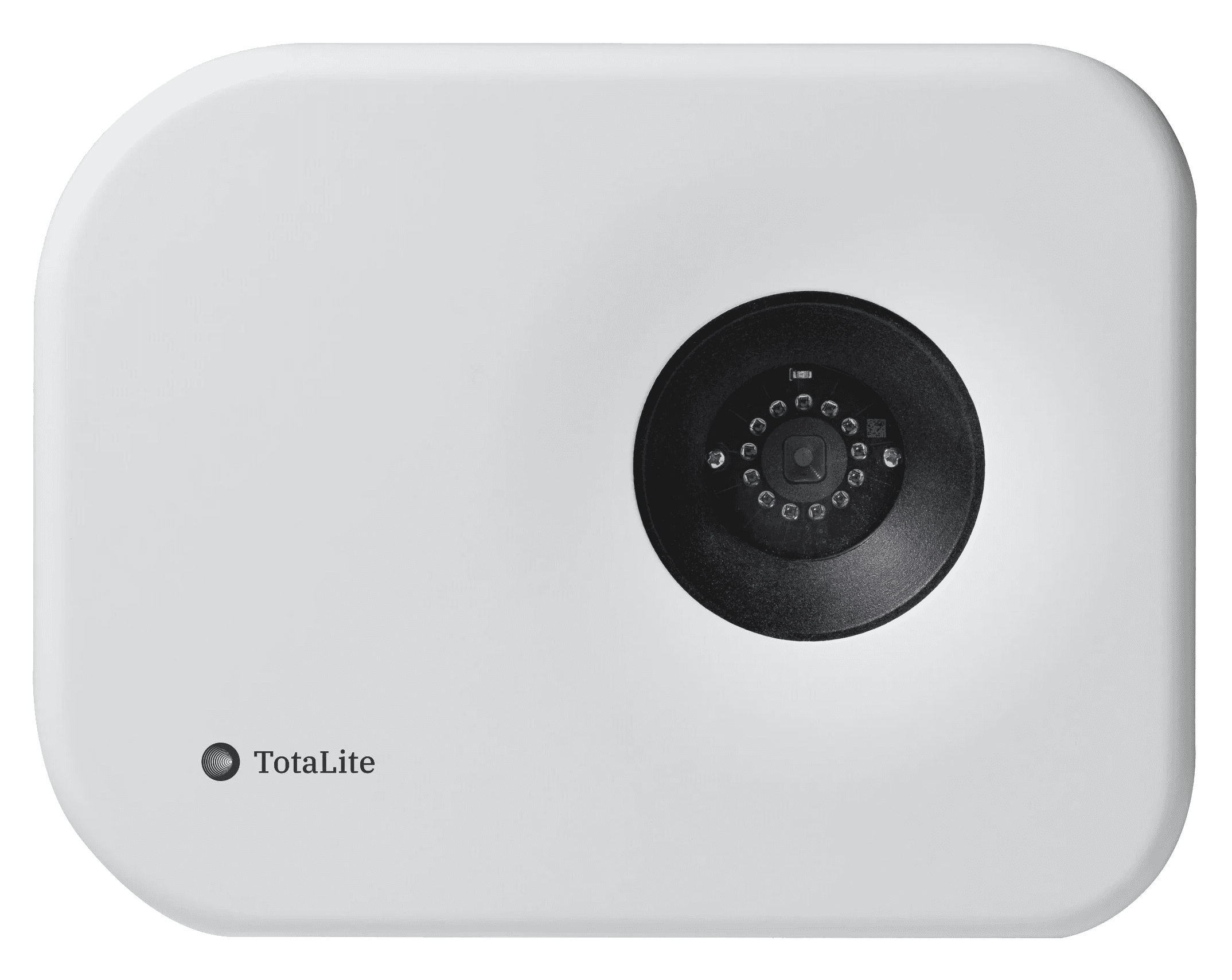

Hardware
The sensor is designed for places you would rather not revisit: tunnels, embankments, live construction sites. Set it up once for continuous measurements.
In the Field
No laptops, no cables. The mobile app walks you through installation, shows you what the sensor sees, and reports device health from anywhere.
Setup wizard
Setup wizard
Step 3 of 4
Guided setup
From unboxing to first measurement in about an hour, one guided step at a time.
Viewfinder
Live view
Target Detected 3
See what the sensor sees
Aim, confirm target detection and frame the scene from your phone.
Device
Status and metrics
Connection
Online
Last measurement
20 min ago
Targets
14
Signal
Good
Diagnostics anywhere
Check connection, last measurement and device health without a site visit.
The Platform
See active projects, device health, alerts, and recent measurement activity from a single operational dashboard.
app.totalite.io
Noorderpad roof - long term monitoring
14 targets. 1 device
Project displacements, past 90 days
95.6% of displacements within limits over the last 90 days
Vertical, target R05
Alert threshold
Last measurement
Live charts per target
Displacement over time, hourly to monthly, raw or averaged.
Thresholds and alerts
Set alert limits per target. Email lands when one is crossed.
Remote device management
Adjust measurement settings and baselines without visiting site.
Share the project
Clients and reviewers see the same data you do.
In Context
TotalLite is not a replacement for every survey instrument. It takes over the repetitive part: watching known points, continuously, in places that are costly to revisit.
Cost figure from customer projects where manual visits were eliminated. Your geometry and tolerances decide the fit; we are happy to review them with you.
Independent certification
CE
EU Radio Equipment Directive 2014/53/EU
UKCA
UK Radio Equipment Regulations 2017
FCC
Part 15, Class A digital device
IC
ISED Canada, RSS-102 and RSS-247
Get the sensor specifications, connector overview, and deployment details in one concise PDF.
